Web Widget Deployment

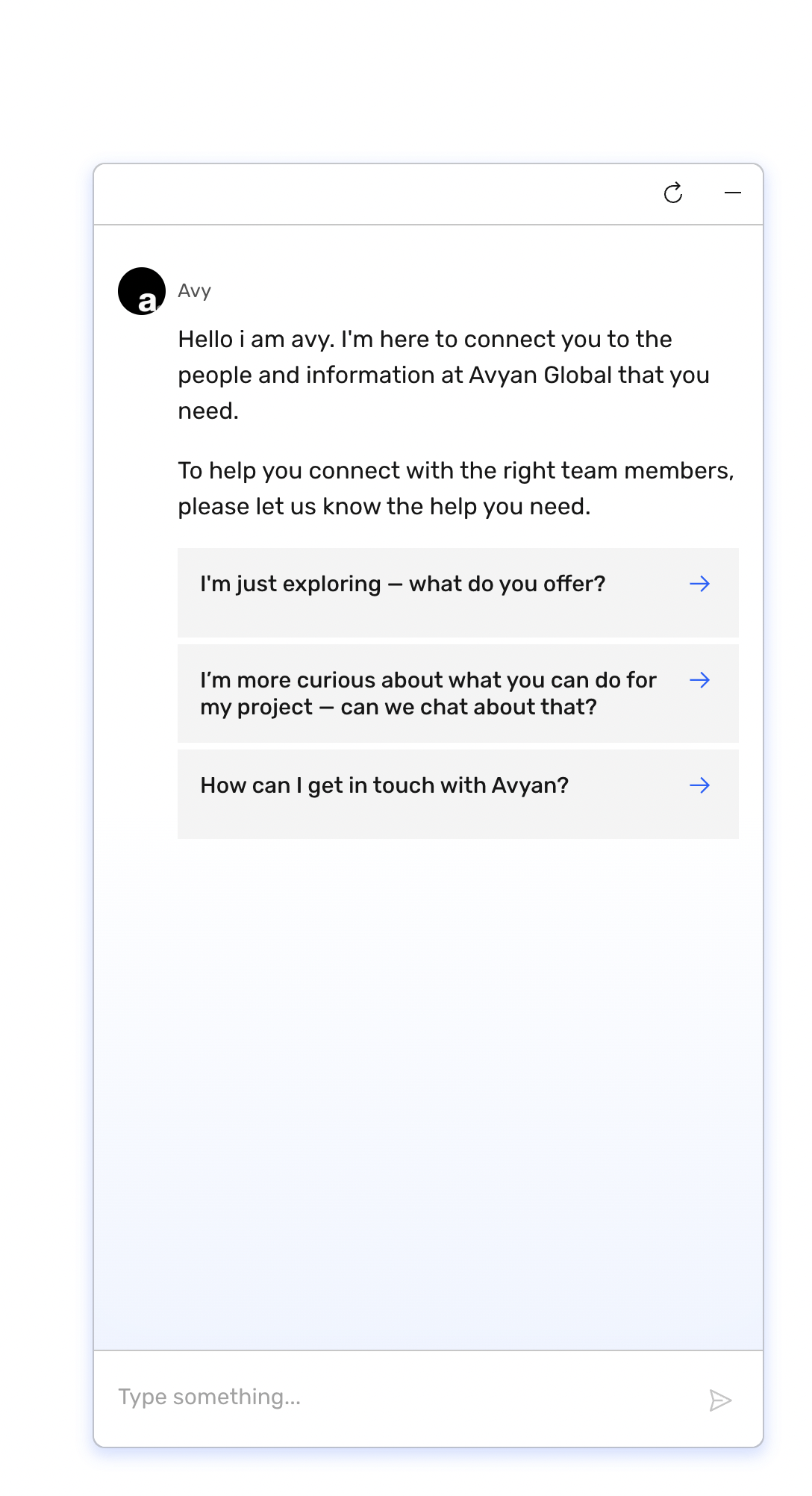

The Web Widget deployment embeds an interactive AI assistant directly into your website. Visitors can type messages, speak via microphone, and hear voice responses — all from a floating widget that loads with a single script tag. Voice input and output are optional; the widget works as a text-only chat by default.

Voice capabilities (microphone input and spoken responses) are optional. You can deploy a text-only chat widget by skipping the Voice Input and Voice Output steps during configuration.

Use Listen when enabling microphone input and Speak when enabling spoken responses for the widget.

Navigate to your assistant, click Configure Assistant, then select Deployments from the sidebar. Click Add Deployment and choose Web Widget. The web widget wizard walks you through four steps:

Experience

Define the greeting, quickstart questions, and session behaviour.Required fields:

Greeting — Welcome message displayed when the widget opens. Describe your agent so users know how to interact with it

Quickstart Questions:

Quickstart Questions — Pre-configured questions displayed as clickable buttons below the greeting. Users can tap one to start a conversation instantly, or type their own query

Advanced settings (expand to configure):

Error Message — Message shown when an unexpected error occurs
Idle Silence Timeout — Duration of silence before Rapida prompts the user (3000-10000ms, default: 30000ms)
Idle Timeout Backoff — How many times the idle timeout multiplies before ending the session (0-5, default: 2)
Idle Message — Message spoken/shown when the user hasn’t responded (default: “Are you there?”)
Maximum Session Duration — Hard limit before the session is automatically ended (3-15 minutes, default: 5 min)

Voice Input (Speech-to-Text) — Optional

Enable microphone-based voice input for the widget. Users can speak instead of typing.If enabled:

STT Provider — Deepgram, AssemblyAI, Google, Azure, OpenAI Whisper, AWS Transcribe, Cartesia, Rev.ai, Speechmatics, Sarvam, Groq, or Nvidia
Model — Provider-specific transcription model
Language — Primary transcription language
Encoding — Audio encoding format
Sample Rate — Audio sample rate

Advanced settings (expand to configure):

Voice Activity Detection (VAD) — Silero VAD with configurable threshold (0.0-1.0, default: 0.8)
Background Noise Removal — RNNoise for removing ambient noise before transcription
End of Speech Detection — Silence-based EOS with configurable timeout (default: 1000ms)

Click Skip to deploy a text-only widget without voice input. You can enable it later by editing the deployment.

Voice Output (Text-to-Speech) — Optional

Enable spoken audio responses from the assistant. The assistant’s text responses will be read aloud through the browser.If enabled:

TTS Provider — ElevenLabs, Deepgram, Azure, Google, OpenAI, AWS Polly, Cartesia, Resemble, Rime, Sarvam, Neuphonic, MiniMax, Groq, Speechmatics, or Nvidia
Model — Provider-specific voice model
Language — Output speech language
Voice ID — The specific voice from your TTS provider

Advanced settings (expand to configure):

Pronunciation Dictionaries — Custom pronunciation for domain-specific terms, names, and acronyms
Conjunction Boundaries — Natural pause points at conjunctions for more human-like speech
Pause Duration — Length of pause at conjunction boundaries (100-300ms, default: 240ms)

Click Skip to deploy without voice output. Text responses will still appear in the chat. You can enable voice output later.

Features

Enable additional content sections available in the web widget beyond the chat interface.Available sections:

Help Center / Q&A Listing — Display a searchable FAQ section alongside the chat, powered by your knowledge base
Product Catalog — Show product listings and details within the widget
Blog Post / Articles — Surface blog posts and articles for self-service browsing

Click Deploy Web Widget to save and activate the deployment.

After deployment, Rapida generates a pre-built widget script (app.min.js) hosted on the Rapida CDN. You configure it by setting window.chatbotConfig before the script loads.

Quick Start

Add this to any page on your website:

<script>
  window.chatbotConfig = {
    assistant_id: "YOUR_ASSISTANT_ID",
    token: "YOUR_PROJECT_CREDENTIAL_KEY",
  };
</script>
<script defer src="https://cdn-01.rapida.ai/public/scripts/app.min.js"></script>

The default configuration renders a floating launcher in the bottom-right corner of the page. Clicking it opens the chat window with your assistant’s greeting and quickstart questions.

Replace YOUR_ASSISTANT_ID with your assistant’s ID (found on the assistant overview page) and YOUR_PROJECT_CREDENTIAL_KEY with your project credential key from the credential vault.

Installation Options

Use the latest hosted widget script:

<script defer src="https://cdn-01.rapida.ai/public/scripts/app.min.js"></script>

Pin to a specific widget build when you need controlled rollout:

<script defer src="https://cdn-01.rapida.ai/public/scripts/v1.2.0/app.min.js"></script>

You can also install the package from npm and serve the built dist/app.min.js file from your own application or CDN:

npm install @rapidaai/web-widget

Configuration Options

Set window.chatbotConfig before loading the widget script. The widget has two configuration layers:

Rapida layer — connection, authentication, assistant version, user identity, language, and debug logging
UI layer — native IBM AI Chat configuration exposed directly on window.chatbotConfig

Rapida always owns messaging.customSendMessage because text messages must go through the Rapida SDK. Rapida also appends its audio controls through renderWriteableElements.afterInputElement; if you provide your own afterInputElement, it is preserved and Rapida audio controls are appended after it. Use the sectioned config shape below. Do not use a carbon config key.

<script>
  window.chatbotConfig = {
    // Required
    assistant_id: "YOUR_ASSISTANT_ID",
    token: "YOUR_PROJECT_CREDENTIAL_KEY",

    // Optional: target a specific assistant version
    assistant_version: "VERSION_ID",

    // Optional: custom API base URL (for self-hosted deployments)
    api_base: "https://assistant-01.in.rapida.ai",

    // Optional: language for the widget UI (default: "en", auto-detects from <html lang="">)
    language: "en",

    // Optional: enable debug logging in the browser console
    debug: false,

    // Optional: user identification
    user: {
      name: "Jane Doe",
      user_id: "user-123",
      meta: {
        plan: "enterprise",
        source: "pricing-page",
      },
    },

    // Optional: assistant identity
    name: "Support Bot",
    logo_url: "https://example.com/avatar.png",

    // Optional: layout
    layout: {
      mode: "floating",          // "floating" | "docked-right" | "docked-left" | "inline"
      position: "bottom-right",  // "bottom-right" | "bottom-left" | "top-right" | "top-left"
      corners: "square",
      showFrame: true,
      customProperties: {
        width: "420px",
        height: "640px",
      },
    },

    // Optional: theme
    theme: {
      mode: "light",             // "light" | "dark" | "system"
      injectTheme: "g10",        // "white" | "g10" | "g90" | "g100"
    },

    // Optional: chat UI sections
    aiEnabled: false,
    header: {
      title: "Support Bot",
      showAiLabel: false,
      minimizeButtonIconType: "side-panel-right",
    },
    launcher: {
      isOn: true,
    },
    history: {
      isOn: false,
    },
    messaging: {
      messageTimeoutSecs: 150,
      messageLoadingIndicatorTimeoutSecs: 1,
    },
  };
</script>
<script defer src="https://cdn-01.rapida.ai/public/scripts/app.min.js"></script>

Required Rapida Options

Property	Type	Default	Description
`assistant_id`	`string`	required	Rapida assistant ID.
`token`	`string`	required	Project credential key from the credential vault.

Rapida Options

Property	Type	Default	Description
`api_base`	`string`	`https://assistant-01.in.rapida.ai`	Rapida API base URL. Use this for self-hosted or environment-specific backends.
`assistant_version`	`string`	latest version	Assistant version to load when the backend supports versioned deployments.
`user.name`	`string`	`Guest`	Display name for the current user.
`user.user_id`	`string`	generated and stored locally	Stable user ID. Provide one if your host app already has an authenticated user ID.
`user.meta`	`Record<string, string>`	`{ source: "web plugin" }`	Extra metadata sent to Rapida with the user session.
`language`	`string`	host page language or `en`	Locale passed to the UI. The widget also watches the `<html lang>` attribute.
`debug`	`boolean`	`false`	Enables additional client logging and passes debug mode to the UI layer.
`name`	`string`	deployment name	Friendly assistant name. Used as the default `assistantName` and `header.title`.
`logo_url`	`string`	default assistant avatar	Assistant avatar URL. Used as the default `assistantAvatarUrl`.

Theme Options

Use theme for all theme-level options.

Property	Type	Default	Description
`theme.mode`	`"light" \| "dark" \| "system"`	`"light"`	Widget color mode. `dark` defaults the UI token injection to `g100`; `light` defaults it to `g10`; `system` lets the host or system decide unless `theme.injectTheme` is set.
`theme.injectTheme`	`"white" \| "g10" \| "g90" \| "g100"`	derived from `theme.mode`	UI theme token injected into the chat shadow DOM. Set this when the host page does not already provide compatible theme tokens.
`theme.color`	`string`	none	Legacy primary brand color. Prefer `layout.customProperties` for current UI customization.

Layout Options

layout can be a string for old embeds or an object for the current sectioned config.

window.chatbotConfig = {
  layout: {
    mode: "floating",
    position: "bottom-right",
    corners: "square",
    showFrame: true,
    customProperties: {
      width: "420px",
      height: "640px",
    },
  },
};

Property	Type	Default	Description
`layout`	`string \| object`	`"floating"`	Widget layout. String values are still supported: `"floating"`, `"docked-right"`, `"docked-left"`, `"inline"`.
`layout.mode`	`"floating" \| "docked-right" \| "docked-left" \| "inline"`	`"floating"`	Rapida placement mode.
`layout.position`	`"bottom-right" \| "bottom-left" \| "top-right" \| "top-left"`	`"bottom-right"`	Floating launcher and panel position.
`layout.showLauncher`	`boolean`	`true` for floating	Legacy launcher shortcut inside `layout`. Prefer `launcher.isOn`.
`layout.showFrame`	`boolean`	`true`	Keeps the native border and shadow frame.
`layout.hasContentMaxWidth`	`boolean`	UI default	Constrains message content to the UI max width.
`layout.corners`	`"round" \| "square" \| object`	`"square"`	Corner style. Use a string for all corners or an object for per-corner control.
`layout.customProperties`	`Record<string, string>`	generated for floating	CSS variable overrides for the chat UI. Values are raw CSS strings.

Per-corner layout.corners object:

Property	Type	Description
`startStart`	`"round" \| "square"`	Top-left in LTR, top-right in RTL.
`startEnd`	`"round" \| "square"`	Top-right in LTR, top-left in RTL.
`endStart`	`"round" \| "square"`	Bottom-left in LTR, bottom-right in RTL.
`endEnd`	`"round" \| "square"`	Bottom-right in LTR, bottom-left in RTL.

Supported layout.customProperties keys:

Key	Description
`height`	Floating chat height.
`max-height`	Floating chat maximum height.
`width`	Floating chat width.
`min-height`	Floating chat minimum height.
`max-width`	Floating chat maximum width.
`z-index`	Floating chat z-index.
`bottom-position`	Floating panel distance from viewport bottom.
`right-position`	Floating panel distance from viewport right.
`top-position`	Floating panel distance from viewport top.
`left-position`	Floating panel distance from viewport left.
`launcher-default-size`	Launcher button size.
`launcher-position-bottom`	Launcher distance from viewport bottom.
`launcher-position-right`	Launcher distance from viewport right.
`launcher-extended-width`	Expanded launcher width.
`messages-max-width`	Maximum width for message content.
`messages-min-width`	Minimum width for message content.
`workspace-min-width`	Minimum width for workspace panels.
`card-max-width`	Maximum width for card responses.
`launcher-color-background`	Launcher background color.
`launcher-color-avatar`	Launcher icon/avatar color.
`launcher-color-background-hover`	Launcher hover background.
`launcher-color-background-active`	Launcher active background.
`launcher-color-focus-border`	Launcher focus border color.
`launcher-mobile-color-text`	Mobile launcher text color.
`launcher-expanded-message-color-text`	Expanded launcher text color.
`launcher-expanded-message-color-background`	Expanded launcher background.
`launcher-expanded-message-color-background-hover`	Expanded launcher hover background.
`launcher-expanded-message-color-background-active`	Expanded launcher active background.
`launcher-expanded-message-color-focus-border`	Expanded launcher focus border color.
`unread-indicator-color-background`	Unread indicator background color.
`unread-indicator-color-text`	Unread indicator text color.

Header Options

Property	Type	Default	Description
`header.isOn`	`boolean`	`true`	Enables the native chat header. Set `false` for a fully embedded or fullscreen experience with your own app header.
`header.title`	`string`	`name` or deployment name	Header title. Set `""` to remove the visible title.
`header.name`	`string`	UI default	Secondary name shown after the title. Set `""` to remove it.
`header.minimizeButtonIconType`	`"close" \| "minimize" \| "side-panel-left" \| "side-panel-right" \| "side-panel-down"`	side-panel icon based on dock side	Icon for the close/minimize button.
`header.hideMinimizeButton`	`boolean`	`false`	Hides the close/minimize button.
`header.showRestartButton`	`boolean`	`false`	Shows the restart conversation button.
`header.menuOptions`	`Array<{ text: string }>`	none	Custom menu options in the header menu.
`header.showAiLabel`	`boolean`	`false`	Shows the AI label in the header. Disabled by default.
`header.hideDefaultAiLabelContent`	`boolean`	`true`	Hides the default AI label popover content.
`header.hasContentMaxWidth`	`boolean`	`false`	Constrains the header to the message content width.
`header.actions`	`ToolbarAction[]`	none	Custom header toolbar actions.

Launcher Options

Property	Type	Default	Description
`launcher.isOn`	`boolean`	`true` for floating, `false` for docked/inline	Shows the floating launcher button.
`launcher.showUnreadIndicator`	`boolean`	UI default	Shows the unread dot on the launcher.
`launcher.mobile.avatarUrlOverride`	`string`	none	Custom mobile launcher avatar or icon URL.
`launcher.mobile.isOn`	`boolean`	`false`	Deprecated expanded call-to-action launcher state.
`launcher.mobile.title`	`string`	translated default	Deprecated expanded launcher title.
`launcher.mobile.timeToExpand`	`number`	`15`	Deprecated delay before launcher expansion, in seconds.
`launcher.desktop.avatarUrlOverride`	`string`	none	Custom desktop launcher avatar or icon URL.
`launcher.desktop.isOn`	`boolean`	`false`	Deprecated expanded call-to-action launcher state.
`launcher.desktop.title`	`string`	translated default	Deprecated expanded launcher title.
`launcher.desktop.timeToExpand`	`number`	`15`	Deprecated delay before launcher expansion, in seconds.

Messaging Options

Property	Type	Default	Description
`messaging.skipWelcome`	`boolean`	UI default	Starts new conversations without requesting a welcome message.
`messaging.messageTimeoutSecs`	`number`	`150`	Message timeout in seconds. Use `0` to disable automatic timeout.
`messaging.messageLoadingIndicatorTimeoutSecs`	`number`	`1`	Delay before the UI shows a loading indicator. Use `0` to prevent the UI from showing one automatically.
`messaging.customSendMessage`	function	Rapida bridge	Reserved. Rapida overwrites this so text is sent through the Rapida SDK.
`messaging.customLoadHistory`	function	none	Optional function that returns native history items for the UI.
`messaging.showStopButtonImmediately`	`boolean`	`false`	Shows the stop button as soon as a message request starts.

Other UI Options

Property	Type	Default	Description
`history.isOn`	`boolean`	`false`	Enables the native history panel.
`history.showMobileMenu`	`boolean`	`true`	Shows mobile header menu options for new chat and view chats.
`history.startClosed`	`boolean`	`false`	Starts history closed and preserves open/closed state across responsive mode changes.
`input.maxInputCharacters`	`number`	`10000`	Maximum characters allowed in the text input.
`input.isVisible`	`boolean`	`true`	Shows or hides the main input surface.
`input.isDisabled`	`boolean`	`false`	Disables text input. Rapida also disables text input while audio mode is active.
`homescreen.isOn`	`boolean`	`false`	Enables the native home screen before chat.
`homescreen.greeting`	`string`	none	Greeting text on the home screen.
`homescreen.starters.isOn`	`boolean`	UI default	Shows starter buttons.
`homescreen.starters.buttons`	`Array<{ label: string; isSelected?: boolean }>`	none	Starter utterances displayed as buttons.
`homescreen.customContentOnly`	`boolean`	`false`	Hides the built-in greeting and starters so custom content can own the home screen.
`homescreen.disableReturn`	`boolean`	`false`	Prevents returning to the home screen after a user has sent a message.
`disclaimer.isOn`	`boolean`	`false`	Shows a disclaimer screen before chat.
`disclaimer.disclaimerHTML`	`string`	required when enabled	HTML content for the disclaimer. If this changes after acceptance, the user must accept again.
`aiEnabled`	`boolean`	`false`	Enables AI visual styling. The widget disables this by default.
`assistantName`	`string`	`name` or deployment name	Assistant name used by the UI for accessibility, errors, and defaults.
`assistantAvatarUrl`	`string`	`logo_url`	Assistant avatar URL used by native messages.
`locale`	`string`	`language`	UI locale. Prefer `language` unless you need to override only the UI.
`namespace`	`string`	`rapida-chat`	Namespace for DOM IDs, storage keys, and multi-instance isolation. Must be 30 characters or fewer.
`openChatByDefault`	`boolean`	`true` for docked/inline, `false` for floating	Opens the chat when it first renders.
`shouldSanitizeHTML`	`boolean`	`true`	Sanitizes assistant HTML before rendering.
`shouldTakeFocusIfOpensAutomatically`	`boolean`	`false`	Moves focus into the chat when it opens on page load.
`disableCustomElementMobileEnhancements`	`boolean`	`false`	Disables mobile enhancements that can conflict with custom element embedding.
`isReadonly`	`boolean`	`false`	Puts the chat in read-only mode for viewing old conversations.
`persistFeedback`	`boolean`	`false`	Keeps feedback controls visible beyond the latest message.
`strings`	partial language pack	UI defaults	Overrides built-in UI strings.
`injectCarbonTheme`	`"white" \| "g10" \| "g90" \| "g100"`	derived from `theme`	Raw UI prop. Prefer `theme.injectTheme`.
`onError`	function	none	Called for catastrophic UI errors.

Upload Options

File upload is experimental in the underlying UI.

Property	Type	Default	Description
`upload.is_on`	`boolean`	`false`	Enables the attachment button. Requires `upload.onFileUpload`.
`upload.accept`	`string`	all file types	Accepted MIME types or extensions, same format as the HTML `accept` attribute.
`upload.maxFileSizeBytes`	`number`	none	Client-side maximum file size.
`upload.maxFiles`	`number`	none	Maximum number of pending files.
`upload.onFileUpload`	function	none	Called once per selected file. Return structured data for the pending message.

Keyboard Shortcut Options

Keyboard shortcut configuration is experimental in the underlying UI.

Property	Type	Default	Description
`keyboardShortcuts.messageFocusToggle.is_on`	`boolean`	`true`	Enables the message/input focus toggle shortcut.
`keyboardShortcuts.messageFocusToggle.key`	`string`	`"F6"`	Primary shortcut key.
`keyboardShortcuts.messageFocusToggle.modifiers.alt`	`boolean`	`false`	Requires Alt.
`keyboardShortcuts.messageFocusToggle.modifiers.shift`	`boolean`	`false`	Requires Shift.
`keyboardShortcuts.messageFocusToggle.modifiers.ctrl`	`boolean`	`false`	Requires Control.
`keyboardShortcuts.messageFocusToggle.modifiers.meta`	`boolean`	`false`	Requires Command/Meta.

Service Desk Options

These are advanced native UI options for human-agent handoff integrations.

Property	Type	Default	Description
`serviceDeskFactory`	function	none	Factory that creates a service desk integration instance.
`serviceDesk.availabilityTimeoutSeconds`	`number`	UI default	Timeout used while checking whether human agents are available.
`serviceDesk.skipConnectHumanAgentCard`	`boolean`	`false`	Auto-connects to an available agent after a connect-to-agent response while still showing the card.
`serviceDesk.agentJoinTimeoutSeconds`	`number`	none	Timeout while waiting for an agent to join after one is requested.
`serviceDesk.allowReconnect`	`boolean`	`true`	Attempts to reconnect the user to a prior human-agent conversation when supported.

Render And Lifecycle Hooks

Property	Type	Description
`onBeforeRender(instance)`	function	Called before the UI renders. Rapida uses this internally, then calls your handler.
`onAfterRender(instance)`	function	Called after the UI renders.
`onViewPreChange(event, instance)`	function	Called before the chat opens or closes. Can return a promise to delay the view change.
`onViewChange(event, instance)`	function	Called after the chat opens or closes. Rapida uses this to track docked/inline shell state, then calls your handler.
`renderUserDefinedResponse`	function	Renders custom `user_defined` response items.
`renderCustomMessageFooter`	function	Renders custom message footers.
`renderWriteableElements`	object	Renders writable slots. Rapida merges `afterInputElement` with its audio controls.

Layout Modes

Floating

A fixed-position panel with a launcher button. Click the launcher to open or close the chat.

window.chatbotConfig = {
  layout: {
    mode: "floating",
    position: "bottom-right",
  },
  launcher: {
    isOn: true,
  },
};

Docked

A side panel fixed to the viewport. When open, it pushes page content to make room.

window.chatbotConfig = {
  layout: {
    mode: "docked-right", // or "docked-left"
  },
};

Inline

The widget flows with the page content. Place the <div id="rapida-chat-app"> where you want it to render.

<div id="rapida-chat-app"></div>
<script>
  window.chatbotConfig = {
    assistant_id: "YOUR_ASSISTANT_ID",
    token: "YOUR_PROJECT_CREDENTIAL_KEY",
    layout: {
      mode: "inline",
    },
  };
</script>
<script defer src="https://cdn-01.rapida.ai/public/scripts/app.min.js"></script>

Legacy Shortcuts

These remain supported for old embeds. Prefer the sectioned config above for new usage.

Property	Replacement
`layout: "floating"`	`layout: { mode: "floating" }`
`layout: "docked-right"`	`layout: { mode: "docked-right" }`
`layout: "docked-left"`	`layout: { mode: "docked-left" }`
`layout: "inline"`	`layout: { mode: "inline" }`
`position`	`layout.position`
`showLauncher`	`launcher.isOn`

Full HTML Example

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>My Website</title>
</head>
<body>
  <h1>Welcome to my website</h1>

  <!-- Rapida Web Widget Configuration -->
  <script>
    window.chatbotConfig = {
      assistant_id: "YOUR_ASSISTANT_ID",
      token: "YOUR_PROJECT_CREDENTIAL_KEY",
      user: {
        name: "Jane Doe",
        user_id: "website-visitor-001",
        meta: {
          source: "marketing-site",
          page: window.location.pathname,
        },
      },
      name: "Support Bot",
      logo_url: "https://example.com/avatar.png",
      layout: {
        mode: "floating",
        position: "bottom-right",
        customProperties: {
          width: "420px",
          height: "640px",
        },
      },
      theme: {
        mode: "light",
        injectTheme: "g10",
      },
      header: {
        title: "Support Bot",
        showAiLabel: false,
      },
      launcher: {
        isOn: true,
      },
    };
  </script>
  <script defer src="https://cdn-01.rapida.ai/public/scripts/app.min.js"></script>
</body>
</html>

Place both script tags just before the closing </body> tag. The defer attribute on app.min.js ensures it loads after the config is set without blocking page rendering.

To make the widget fill the entire viewport, use inline mode and mount the widget into a full-page #rapida-chat-app element:

<style>
  html,
  body,
  #rapida-chat-app {
    width: 100%;
    height: 100%;
    margin: 0;
  }
</style>
<div id="rapida-chat-app"></div>
<script>
  window.chatbotConfig = {
    assistant_id: "YOUR_ASSISTANT_ID",
    token: "YOUR_PROJECT_CREDENTIAL_KEY",
    layout: {
      mode: "inline",
      showFrame: false,
    },
    header: {
      isOn: false,
    },
  };
</script>
<script defer src="https://cdn-01.rapida.ai/public/scripts/app.min.js"></script>

Platform Integration Guides

WordPress

Go to Appearance > Theme File Editor (or use a plugin like Insert Headers and Footers)
Add the following before the closing </body> tag in your theme’s footer.php:

<script>
  window.chatbotConfig = {
    assistant_id: "YOUR_ASSISTANT_ID",
    token: "YOUR_PROJECT_CREDENTIAL_KEY",
  };
</script>
<script defer src="https://cdn-01.rapida.ai/public/scripts/app.min.js"></script>

Save and verify the widget loads on your site

Shopify

Go to Online Store > Themes > Edit Code
Open theme.liquid
Add the scripts before the closing </body> tag:

<script>
  window.chatbotConfig = {
    assistant_id: "YOUR_ASSISTANT_ID",
    token: "YOUR_PROJECT_CREDENTIAL_KEY",
  };
</script>
<script defer src="https://cdn-01.rapida.ai/public/scripts/app.min.js"></script>

Save and preview your store

Webflow

Go to Project Settings > Custom Code
Paste in the Footer Code section:

<script>
  window.chatbotConfig = {
    assistant_id: "YOUR_ASSISTANT_ID",
    token: "YOUR_PROJECT_CREDENTIAL_KEY",
  };
</script>
<script defer src="https://cdn-01.rapida.ai/public/scripts/app.min.js"></script>

Publish your site

Squarespace

Go to Settings > Advanced > Code Injection
Paste in the Footer section:

<script>
  window.chatbotConfig = {
    assistant_id: "YOUR_ASSISTANT_ID",
    token: "YOUR_PROJECT_CREDENTIAL_KEY",
  };
</script>
<script defer src="https://cdn-01.rapida.ai/public/scripts/app.min.js"></script>

Save and preview your site

Next.js

Use Next.js Script component in your root layout:

// app/layout.tsx (App Router)
import Script from "next/script";

export default function RootLayout({ children }) {
  return (
    <html lang="en">
      <body>
        {children}
        <Script id="rapida-config" strategy="beforeInteractive">
          {`window.chatbotConfig = {
            assistant_id: "${process.env.NEXT_PUBLIC_RAPIDA_ASSISTANT_ID}",
            token: "${process.env.NEXT_PUBLIC_RAPIDA_TOKEN}",
          };`}
        </Script>
        <Script
          src="https://cdn-01.rapida.ai/public/scripts/app.min.js"
          strategy="lazyOnload"
        />
      </body>
    </html>
  );
}

Vue / Nuxt

// nuxt.config.ts
export default defineNuxtConfig({
  app: {
    head: {
      script: [
        {
          children: `window.chatbotConfig = {
            assistant_id: "YOUR_ASSISTANT_ID",
            token: "YOUR_PROJECT_CREDENTIAL_KEY",
          };`,
        },
        {
          src: "https://cdn-01.rapida.ai/public/scripts/app.min.js",
          defer: true,
        },
      ],
    },
  },
});

For plain Vue, add the script tags directly to public/index.html.

Angular

Add to src/index.html before the closing </body> tag:

<script>
  window.chatbotConfig = {
    assistant_id: "YOUR_ASSISTANT_ID",
    token: "YOUR_PROJECT_CREDENTIAL_KEY",
  };
</script>
<script defer src="https://cdn-01.rapida.ai/public/scripts/app.min.js"></script>

Static HTML / Any Website

Copy and paste the following into any HTML page:

<script>
  window.chatbotConfig = {
    assistant_id: "YOUR_ASSISTANT_ID",
    token: "YOUR_PROJECT_CREDENTIAL_KEY",
  };
</script>
<script defer src="https://cdn-01.rapida.ai/public/scripts/app.min.js"></script>

Self-Hosted Deployment

If you’re running Rapida on your own infrastructure, override the api_base to point at your assistant API:

<script>
  window.chatbotConfig = {
    assistant_id: "YOUR_ASSISTANT_ID",
    token: "YOUR_PROJECT_CREDENTIAL_KEY",
    api_base: "https://your-assistant-api.example.com",
  };
</script>
<script defer src="https://cdn-01.rapida.ai/public/scripts/app.min.js"></script>

You can also self-host the widget script itself. Build the react-widget SDK and upload the generated dist/app.min.js to your own CDN or static file server:

cd sdks/react-widget
npm install
npm run build
# Upload dist/app.min.js to your CDN

Then reference your self-hosted script:

<script defer src="https://your-cdn.example.com/scripts/app.min.js"></script>

How It Works

When the widget script loads, it:

Reads configuration from window.chatbotConfig
Reuses an existing <div id="rapida-chat-app"> or creates one and appends it to the page <body>
Initialises a VoiceAgent instance using the @rapidaai/react SDK with the web plugin client connection
Fetches the assistant’s web plugin deployment config (greeting, suggestions, voice settings)
Renders the configured layout: floating launcher, docked side panel, or inline chat
Supports both text input and voice input (with microphone visualizer, device selection, and mute controls)
Passes supported UI configuration through to the native IBM AI Chat layer
Auto-detects language changes on the <html lang=""> attribute
Persists the user ID in localStorage (rpd__uuid) across sessions when no user.user_id is provided

The pre-built widget includes:

Text chat — Type messages and receive markdown-rendered responses
Voice input — Click the audio icon to switch to voice mode with real-time microphone visualization
Microphone device selector — Choose from available input devices via a dropdown flyout
Mute/unmute — Toggle microphone during voice conversations
Quickstart suggestions — Clickable buttons from your deployment’s configured suggestions
Session reset — Restart the conversation via the header button
Auto-scroll — Chat automatically scrolls to the latest message
Layout modes — Use floating, docked-right, docked-left, or inline rendering
Theme controls — Use light, dark, system, or explicit UI token injection

Input and Output Modes

Voice Input	Voice Output	User Experience
Disabled	Disabled	Text-only chat
Enabled	Disabled	Users speak, assistant replies with text
Disabled	Enabled	Users type, assistant replies with voice + text
Enabled	Enabled	Full voice conversation with text transcript

Troubleshooting

Issue	Solution
Widget does not appear	Verify `assistant_id` and `token` are correct. Check the browser console for errors — the widget logs `"Please provide an assistant_id"` or `"Please provide an authentication token"` if either is missing
Voice input not working	Ensure the page is served over HTTPS (required for microphone access). Check that the deployment has STT configured
Widget loads but shows no greeting	Ensure you have an active Web Widget deployment for this assistant (not an SDK/API deployment)
User ID resets across visits	The widget stores the auto-generated ID in `localStorage` as `rpd__uuid`. If `localStorage` is cleared, a new ID is generated. Pass a stable `user.user_id` in the config to avoid this
CORS errors in console	If self-hosting, ensure your reverse proxy allows requests from your website’s origin to the assistant API
`window.chatbotConfig` not read	Make sure the config script runs before `app.min.js`. Use a regular `<script>` tag (not `defer`) for the config, and `defer` on the widget script

Use Cases

Customer Support

Provide instant answers and reduce support ticket volume with 24/7 voice-enabled help.

Lead Generation

Engage visitors with qualifying questions and route them to your sales team.

Product Recommendations

Guide users through product catalogs with personalized suggestions.

Appointment Scheduling

Let users book appointments directly through conversational flow.

Create an Assistant — Set up your assistant before deploying
Listen — Choose and tune STT, VAD, noise cancellation, and EOS settings
Speak — Choose and tune TTS, voice, pronunciation, and speech delivery settings
Web App (React SDK) — Full SDK integration for custom React apps with complete UI control
Credentials — Manage your project credential keys
Conversation Logs — Monitor widget conversations
Webhooks — Receive post-conversation events

Creating a Web Widget Deployment

Embedding the Widget

Quick Start

Installation Options

Configuration Options

Required Rapida Options

Rapida Options

Theme Options

Layout Options

Header Options

Launcher Options

Messaging Options

Other UI Options

Upload Options

Keyboard Shortcut Options

Service Desk Options

Render And Lifecycle Hooks

Layout Modes

Floating

Docked

Inline

Legacy Shortcuts

Full HTML Example

Full-Screen Widget

Platform Integration Guides

Self-Hosted Deployment

How It Works

Widget Features

Input and Output Modes

Troubleshooting

Use Cases

Customer Support

Lead Generation

Product Recommendations

Appointment Scheduling

​Creating a Web Widget Deployment

​Embedding the Widget

​Quick Start

​Installation Options

​Configuration Options

​Required Rapida Options

​Rapida Options

​Theme Options

​Layout Options

​Header Options

​Launcher Options

​Messaging Options

​Other UI Options

​Upload Options

​Keyboard Shortcut Options

​Service Desk Options

​Render And Lifecycle Hooks

​Layout Modes

​Floating

​Docked

​Inline

​Legacy Shortcuts

​Full HTML Example

​Full-Screen Widget

​Platform Integration Guides

​Self-Hosted Deployment

​How It Works

​Widget Features

​Input and Output Modes

​Troubleshooting

​Use Cases

Customer Support

Lead Generation

Product Recommendations

Appointment Scheduling

​Related

Creating a Web Widget Deployment

Embedding the Widget

Quick Start

Installation Options

Configuration Options

Required Rapida Options

Rapida Options

Theme Options

Layout Options

Header Options

Launcher Options

Messaging Options

Other UI Options

Upload Options

Keyboard Shortcut Options

Service Desk Options

Render And Lifecycle Hooks

Layout Modes

Floating

Docked

Inline

Legacy Shortcuts

Full HTML Example

Full-Screen Widget

Platform Integration Guides

Self-Hosted Deployment

How It Works

Widget Features

Input and Output Modes

Troubleshooting

Use Cases

Related
